Specifications:
Colour(s) | White |
Black | |
Beam angle | 15°/24°/36° |
CCT | 3000K / 4000K / 5700K / 6500K |
Fixture material | Die cast aluminium |
Environment | Indoor |
IP rate | IP20 |
Operating temperture(Ta) | -20°C ~ +50°C |
CRI | 80 |
Warranty | 3 years |
Safety Class | II |
Input | AC100-240V 50/60Hz |
AC160-240V 50/60Hz | |
Option | Dimmable |

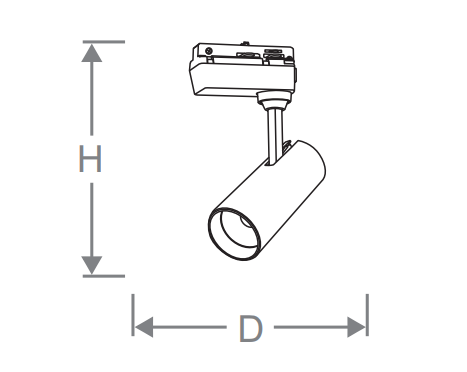

Dimesions：
| D×H | |
QK-DL-FLS-10 | Φ87×78mm |
QK-DL-FLS-20 | Φ87×88mm |
QK-DL-FLS-30 | Φ85×58mm |
Item specifications:
| Description | LED power | LEDS | CRI(typ.) | Driver | PF | Lm/W |
| QK-DL-FLS-10 | 10W | COB | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/90 |
| QK-DL-FLS-20 | 20W | COB | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/90 |
| QK-DL-FLS-30 | 30W | COB | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/90 |

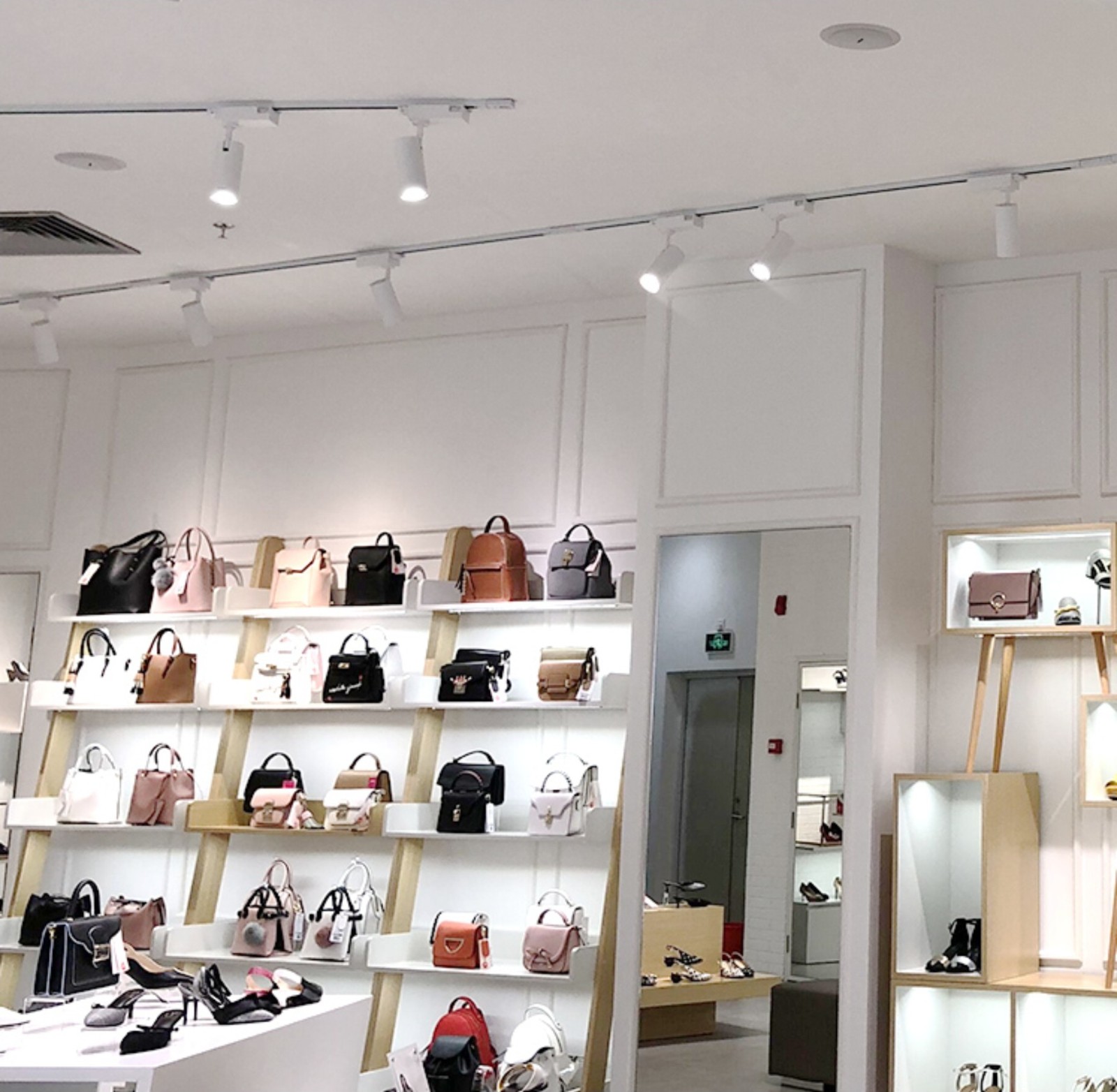

Product scene：
